Have you ever wanted to mount your Raspberry Pi, Intel NUC, Asus or Beelink
miniPC to a tripod leg, Losmandy or Vixen rail, Arca-Swiss saddle or Synta
dovetail shoe (or others)? Now you can with these lightweight yet
sturdy mounting solutions.
The system consists of two parts: a bracket for your MiniPC/Pi
and one of several different attachments.
MiniPC-NUC-85
: Most NUC's use 85mm screw hole spacing. This bracket is
suitable for most NUC's.
MiniPC-NUC-94
: NUC's with special 94mm screw hole spacing (NUC models with
8i7HNK, 8i7HVK, 6i7KYK in the model name).
MiniPC-Beelink-32
: Beelink MiniPCs with M3 holes spaced 32mm apart.
MiniPC-Beelink-35 : Beelink MiniPCs with M3 holes spaced
35mm apart.

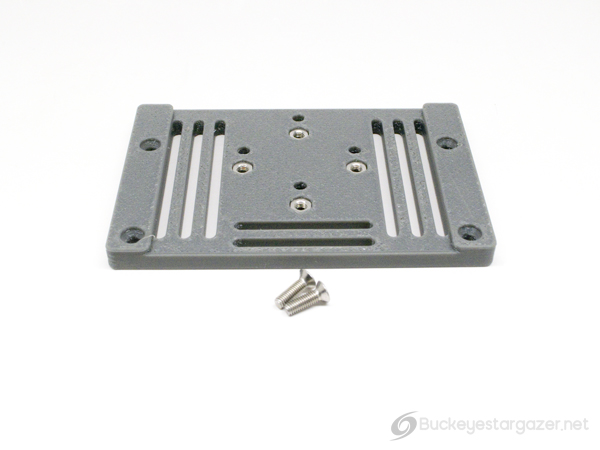

MiniPC-MeLEQ-80
: MeLE Quieter 2, 3, 4 MiniPC with M3 holes spaced 80mm apart.
MiniPC-MeLE-HD3Q
: MeLE Quieter HD3Q MiniPC with 75mm/85mm hole spacing.
MiniPC-MeLEPCG35-75
: MeLE PCG35 MiniPC with M4 holes spaced 75mm apart.
Pi4b-Case
: Custom designed case for the Raspberry Pi 4b. The top of
the case includes two mounting holes with M3 nuts for a 30mm fan to mount
outside the case (not pictured).
Pi5-Case: Custom designed case for the Raspberry Pi 5.
HighPi-Bracket
: This bracket attaches to a HighPi case.
Rail Attachments - Bolt the bracket onto the MiniPC with supplied
M3x10mm screws, then bolt one of the following Rail Attachments to the
bracket.
LSaddle
: Losmandy saddle that clamps to a Losmandy/"D" bar
VSaddle
: Vixen saddle that mounts to a Vixen bar
VBar
: Vixen bar that slips into a Vixen clamp
ADM-MDS-Saddle
: Clamps to a ADM MDS style bar
ArcaSwiss-Saddle
: Arca-Swiss saddle that clamps to an Arca-Swiss bar
ArcaSwiss-Bar
: An Arca-Swiss bar that slips into an Arca-Swiss clamp
Synta-Bar-20mm
: Synta/Vixen bar,slips into a finder shoe, 20mm tall
Synta-Bar-50mm
: Synta/Vixen bar,slips into a finder shoe, 50mm tall
Tripod Round Leg Attachments- These attachments push fit onto a tripod
leg and hold it securely. The NUC slips into the Bracket slots as with
a typical Vesa mount for easy on/off.
