These brackets provides a way to attach your QHY PoleMaster or iOptron iPolar to your telescope or mount for polar alignment. For example, you can attach the camera directly to a Vixen bar on top of the scope, or in a finderscope shoe, etc.
The universal brackets consist of two parts: a bracket for your camera and one of several different attachments.
Dedicated brackets do not need an "Attachment" but attach directly to the mount.
PoleMaster Bracket
PoleMaster-Bracket: The Bracket can be
mounted either above or below the scope and the PoleMaster is bolted to
the Bracket with supplied M3x20mm stainless steel bolts and nuts.

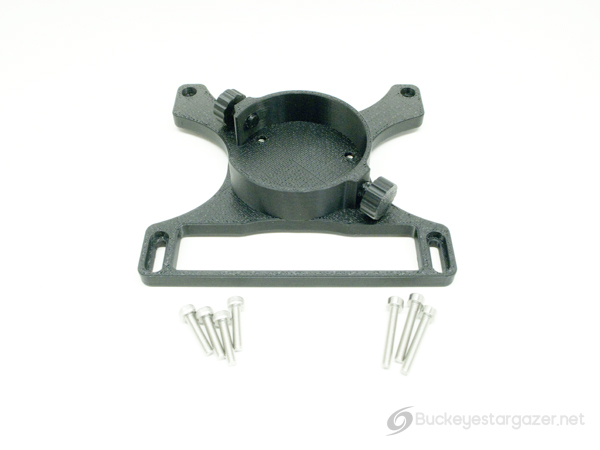

PoleMaster-AM5: Dedicated PoleMaster
bracket for AM5/AM5N. The PoleMaster can be mounted semi-permanently with
(3) M3x20mm screws, or by two thumb screws for quick placement or removal. NOTE: an "Attachment" is not necessary and will not be included.
iPolar-Bracket: iPolar bracket. The
camera is held in place by a thumbscrew, which can be positioned on top
or the side. Accomodates iPolar's with different cable orientations.
iPolar-AZEQ5: Dedicated iPolar mount
for the iOptron AZ-EQ5 mount. Bolts onto the mount using the mount screws
as indicted. NOTE: an "Attachment" is not necessary and will not
be included. Printed SOLID with a carbon fiber reinforced filament
for strength (BLACK only).
iPolar-EQ8: Dedicated iPolar mount for
the EQ8 mount. Bolts onto the mount using screws provided with the EQ8.
NOTE: an "Attachment" is not necessary and will not be included.
Printed SOLID with a carbon fiber reinforced filament for strength
(BLACK only).
Attachments bolt onto the bracket and present several options:
LSaddle
: Clamps onto a Losmandy style bar
LBar
: Slips into a Losmandy style saddle
VSaddle
: Clamps onto a Vixen style bar
VBar
: Slips into a Vixen style saddle
ADM-MDS-Saddle
: Clamps to a ADM MDS style bar
ArcaSwiss-Saddle
: Clamps onto an Arca-Swiss bar
ArcaSwiss-Bar
: Slips into an Arca-Swiss saddle
Synta-Bar-20mm
: Slips into a Synta/Vixen finder base, 20mm tall
Synta-Bar-50mm
: Slips into a Synta/Vixen finder base, 50mm tall
Note that Attachments can be oriented either direction.
